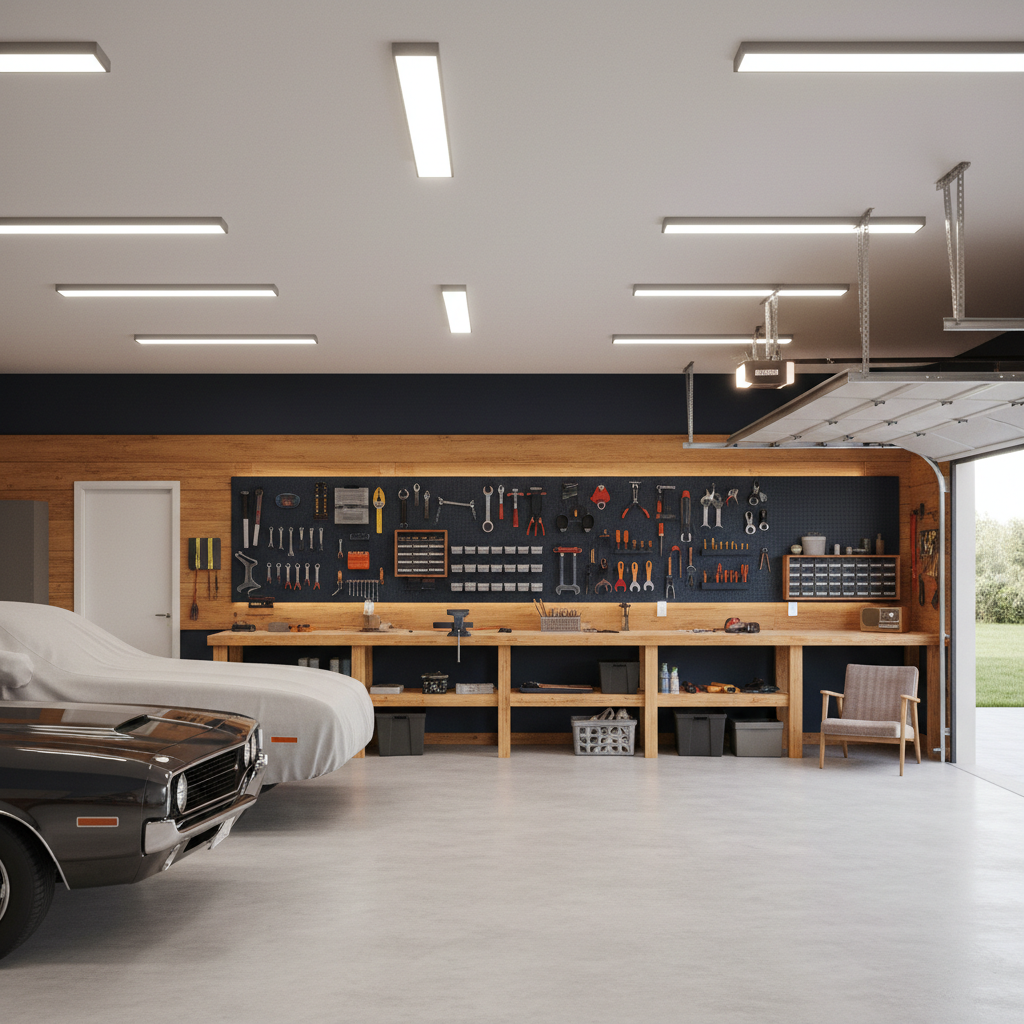

Shadow Zones, Eye Strain, and Wasted Space — How to Plan a Real LED Shop Light Garage Workshop Upgrade

The Real Cost of Bad Garage Lighting

You know that moment when you're trying to measure a cut line and you can't quite tell if the pencil mark is on the right spot? Or you reach under the hood of a car and you're basically working by feel because the overhead bulb threw a shadow exactly where you needed light? That's not a skill problem. That's a lighting problem.

Bad garage lighting costs you time, accuracy, and honestly — motivation. It's hard to want to spend a Saturday afternoon in a dim, flickering space. The good news is that an LED shop lights for garage workshop upgrade is one of the highest-impact improvements you can make, and it doesn't require rewiring or a contractor. But there are real decisions to get right before you start buying fixtures. Let's walk through all of them.

Why Fluorescent Tubes Stopped Being Good Enough

For decades, the standard garage lighting setup was a couple of T8 or T12 fluorescent shop lights hung from the ceiling. They worked — sort of. But fluorescent tubes have some annoying limitations that get worse over time.

They flicker at startup, especially in cold weather. If your garage drops below 50°F in winter, you may be waiting a full minute before the light stabilizes.
They lose brightness gradually. A fluorescent tube at 70% of its life outputs noticeably less light than when it was new — but it's a slow enough decline that you don't notice until you install something better.
They're fragile. A falling pipe or a stray board can shatter a tube instantly. Cleanup is annoying, and some older tubes contain mercury.
Color rendering is mediocre. That washed-out, slightly greenish light makes it hard to see grain lines in wood, true paint colors, or wire color codes.

LED shop lights solve every single one of these issues. Instant-on at any temperature. No flicker. Consistent brightness across the full rated lifespan (often 50,000 hours or more). Shatter-resistant. And the color rendering on modern LEDs is dramatically better — which matters more in a workshop than most people realize.

Understanding Lumens: The Number That Actually Matters

Wattage used to be shorthand for brightness. That's no longer true. With LEDs, the number you care about is lumens — a direct measurement of how much light a fixture puts out.

Here's a rough guide for garage and workshop spaces:

General parking/storage garage: 50 lumens per square foot is usually enough.
Active workshop (woodworking, automotive, hobby work): 100–150 lumens per square foot is where you want to be.
Detail-oriented work (electronics, painting, fine woodworking): Push toward 150–200 lumens per square foot.

So for a standard two-car garage at roughly 400 square feet, a serious workshop setup should target somewhere between 40,000 and 60,000 total lumens. That sounds like a big number, but modern 4-foot LED shop lights often output 5,000–6,000 lumens per fixture. That means 8–10 fixtures gets you there.

Always check the actual lumen output on the spec sheet — not just the wattage or the vague "equivalent" claim on the packaging.

Color Temperature: Don't Ignore the Kelvin Rating

LED lights come in a range of color temperatures, measured in Kelvin (K). This affects how your workspace looks and feels — and more practically, how well you can see what you're doing.

2700K–3000K (warm white): The yellow-toned light you'd find in a living room. Cozy, but terrible for task work. Avoid this in a workshop.
4000K–4500K (neutral/cool white): A solid all-around choice for garages. Bright and clear without feeling harsh. Good color rendering.
5000K–6500K (daylight/cool blue): Excellent for detail work. Makes it easier to distinguish colors and spot surface defects. Some people find it a bit cold-feeling for long sessions.

For most garage workshops, 5000K is the sweet spot. It mimics natural daylight well, which means your paint colors look accurate, your wood grain reads correctly, and wire colors (red vs. orange vs. red-orange, yes those exist) are actually distinguishable.

Fixture Layout: Covering the Whole Space, Not Just the Middle

One of the most common mistakes in a garage lighting upgrade is buying enough total lumens on paper but ending up with bright spots and dead zones in practice. Layout matters as much as raw output.

A few principles:

Rows, Not Clusters

Arrange fixtures in parallel rows running the length of your garage rather than clustering them in the center. This distributes light more evenly across your entire floor plan, including workbenches along the walls.

Spacing Guidelines

A good rule of thumb: space fixtures no more than 1.5 times the ceiling height apart. So with 9-foot ceilings, keep fixtures no more than about 13–14 feet apart. Closer is better for task work.

Workbench Zones

If you have a dedicated workbench along a wall, plan at least one fixture to run directly over it — not just the overhead grid. Workbench tasks like measuring, chiseling, and wiring benefit from close, direct overhead light without shadows cast by your own body.

Don't Forget Corners

Corners are where tools live and where projects pile up. Make sure your layout extends to within a few feet of the side walls.

Mounting Options: Chains, Flush Mount, or Surface Mount?

Most LED shop lights designed for garage use offer a few hanging or mounting options. Here's how they break down:

Chain Hanging

Classic shop light setup. You mount hooks to the ceiling joists and hang the fixture on chains. This is the easiest to install and lets you adjust the hanging height easily. The downside is that hanging fixtures can swing if you bump them, and they don't look as clean if aesthetics matter to you.

Surface/Flush Mount

The fixture attaches directly to the ceiling. Cleaner look, no swing, and often slightly better light distribution because the fixture sits closer to a reflective ceiling surface. Requires drilling into joists, so placement needs to be planned before you start.

V-Hook or Ceiling Hook Mount

Some LED shop lights come with a single center hook that drops down from a ceiling-mounted anchor. Quick and flexible, but better suited for occasional lighting than permanent workshop setups.

For a permanent workshop upgrade, surface mount or chain mount with joist-mounted hooks is the way to go. Make sure whatever hardware you use is rated for the fixture weight — most 4-foot LED shop lights are light (often under 5 lbs), but you still want solid anchors.

Linkable Fixtures: A Feature Worth Paying For

Many modern LED shop lights — including 4-foot bay-style fixtures designed for exactly this kind of upgrade — support daisy-chain linking. That means you wire the first fixture to your electrical source, and then connect subsequent fixtures to each other in a line rather than running individual wires back to the switch for each one.

This dramatically simplifies installation. Instead of needing an electrician to add multiple circuits, you can run a single circuit and link up to 4–6 fixtures (check the spec sheet for the maximum chain) off of it.

If you're doing a full garage workshop upgrade, linkable fixtures are genuinely worth the slight premium over standalone units. The BS84 LED Shop Lights for Workshop are a good example of a 4-foot fixture designed with this kind of workshop use in mind — linkable, high output, and built for overhead installation.

Electrical Basics: What Most DIYers Overlook

Before you start mapping out your lighting grid, you need to understand your electrical capacity. This is the part people skip and then regret.

Check your circuit breaker panel. What circuits are dedicated to your garage? A standard 15-amp circuit at 120V can handle about 1,800 watts continuously (80% of the 2,250W theoretical max). Modern LED shop lights are energy-efficient — a typical 45W fixture means you can run 30+ lights on a single 15A circuit. So electricity capacity is almost never the limiting factor with LEDs.
Know where your outlets and junction boxes are. Linking fixtures is easy, but you still need a starting power point. Map your existing outlets and ceiling boxes before planning fixture placement.
Switch placement matters. If you're adding fixtures beyond your existing switch's zone, you may need to add a switch leg or use smart/remote-controlled fixtures. Plan this before you hang anything.

For most garages, the existing electrical setup is more than enough to handle a full LED upgrade. It's really just a matter of routing the power connection efficiently.

What "IP Rating" Means (And When It Matters in a Garage)

IP (Ingress Protection) ratings tell you how well a fixture handles dust and moisture. You'll see ratings like IP44, IP65, IP67.

First digit (dust): Ranges from 0 (no protection) to 6 (fully dust-tight). For a dusty workshop, a rating of 5 or 6 is ideal.
Second digit (moisture): Ranges from 0 to 8. A rating of 4 means splash-resistant. 5 means it can handle a directed water stream. 6 is fully watertight for most practical purposes.

For an indoor garage workshop, an IP44 or IP54 rating is typically sufficient — it handles sawdust and the occasional spray from washing a car. If your garage is partially open, exposed to rain, or doubles as a wash bay, go IP65 or higher.

CRI: The Hidden Quality Metric

Color Rendering Index (CRI) measures how accurately a light source renders colors compared to natural daylight. The scale runs from 0 to 100, with 100 being perfect.

CRI 70–79: Acceptable for basic lighting. Colors look okay but not great.
CRI 80–89: Good general standard. Most quality LED shop lights land here.
CRI 90+: Excellent. Colors look true to life. Worth it if you do finishing work, auto bodywork, or any color-sensitive task.

Don't obsess over CRI if your garage is primarily for storage and basic repairs. But if you do woodworking with stain and finish, automotive paint, or any craft work where color accuracy matters, CRI 90+ fixtures are worth the extra cost.

Making the Most of Your Newly Lit Space

Here's something I've noticed: once you upgrade the lighting, you suddenly see everything your garage is — and everything it could be. That dark corner where tools were buried becomes a usable station. The wall you always ignored suddenly looks like prime real estate for organization.

Good lighting doesn't just help you work — it motivates you to actually organize and use the space. It's worth thinking about your full workshop setup at the same time you plan the lighting upgrade. Wall storage, cabinet placement, and workbench positioning all interact with where your lights land.

Quick Planning Checklist Before You Buy

Measure your garage square footage. Length × width. Write it down.
Set your target lumens. Multiply square footage by 100–150 for a working workshop.
Calculate fixture count. Divide total target lumens by the per-fixture lumen output of the lights you're considering.
Map ceiling joists. Know where you can actually anchor fixtures before planning the layout.
Check color temperature. 5000K for most workshop use.
Check CRI if color accuracy matters for your work.
Confirm IP rating matches your environment.
Decide on mounting style: chain, flush, or hook.
Look for linkable fixtures if you're installing more than two or three.
Verify your electrical starting point — outlet or junction box location — before finalizing fixture row placement.

The Before-and-After That Sells Itself

There's a reason every DIYer who completes an LED shop lights for garage workshop upgrade posts a before-and-after photo. The transformation is that visible. A properly lit garage just looks professional. It signals to your brain that this is a space where real work happens — and that shift in how you see the space changes how you use it.

The investment is modest. The impact is immediate. And unlike a lot of garage upgrades, this one pays back in every single session afterward. Better visibility, fewer mistakes, less frustration, and honestly — just more enjoyment spending time out there.

Start with the math: square footage, target lumens, fixture count. Everything else falls into place from there.
