What Happens When You Finally Get the Wiring Right in a Pure Copper Battery Cable Inverter Car Setup

The Inverter Works Fine in the Store. Then You Wire It Up at Home.

You bought a decent inverter. Maybe 1000 watts, maybe more. You watched a few install videos, grabbed some cables from the hardware store, and connected everything to your car battery. The inverter powers up, you plug something in — and it either shuts off immediately, runs hot, or just underperforms no matter what you do.

This is one of the most common frustrations in any pure copper battery cable inverter car setup, and the culprit almost never gets named: the cable. Specifically, using the wrong gauge, wrong material, or wrong length of battery cable can quietly destroy the performance of even a well-rated inverter. Let's break down exactly what's happening and how to fix it the right way.

Voltage Drop: The Invisible Problem in Every Bad Inverter Install

Here's a concept that doesn't get enough attention in DIY inverter tutorials: voltage drop.

When current flows through a wire, resistance in that wire causes the voltage to decrease between the source (your battery) and the destination (your inverter). The longer the cable and the thinner the wire, the worse the drop. And inverters are extremely sensitive to this.

Most 12V inverters are designed to operate within a fairly tight voltage window — typically between 10.5V and 15V. If your cable resistance causes the voltage to drop below that threshold under load, the inverter's internal protection circuit kicks in and shuts the whole thing down. That's not a defective inverter. That's physics.

A typical piece of copper-clad aluminum (CCA) cable — which is what a lot of budget battery cables are made of — has roughly 1.5 to 1.6 times the resistance of solid pure copper at the same gauge. That resistance difference doesn't just affect raw numbers. It adds up to real heat, real voltage sag, and real underperformance in a real car inverter setup.

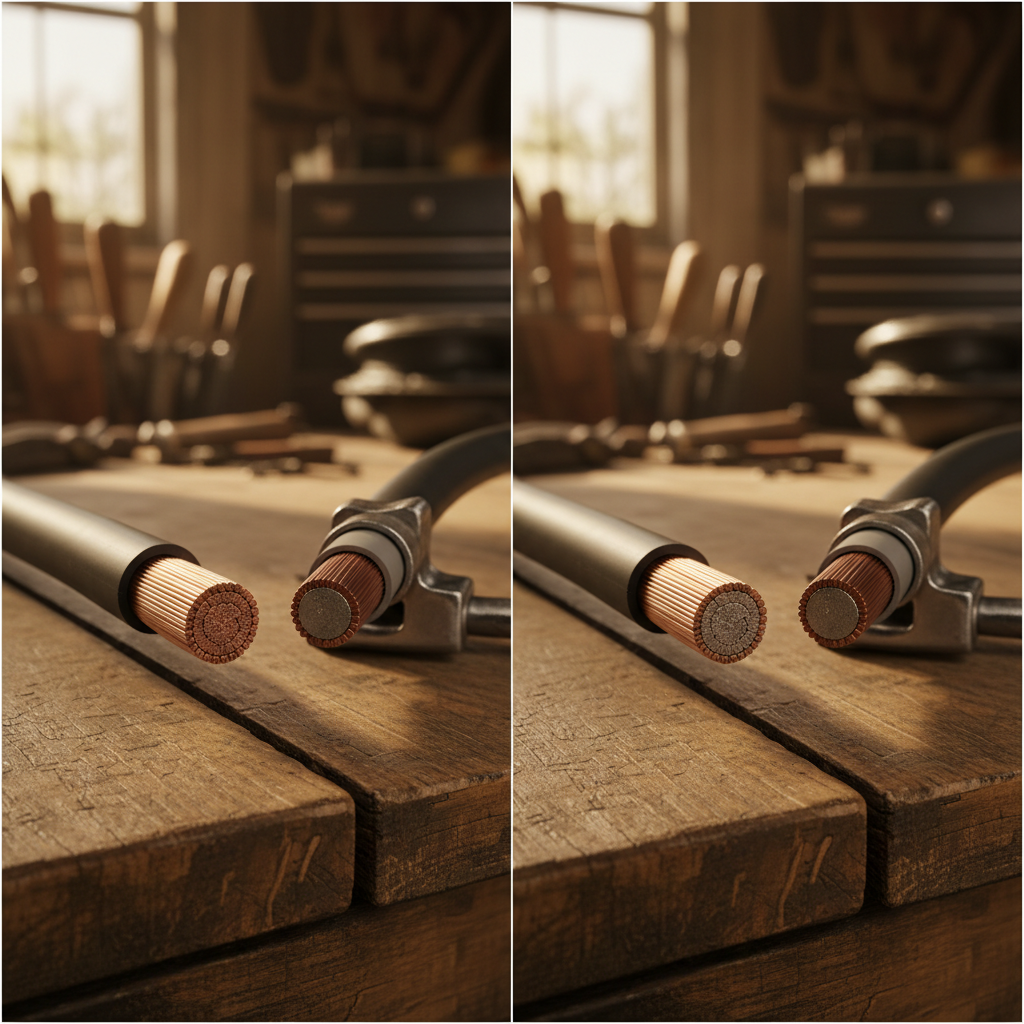

Copper-Clad Aluminum vs. Pure Copper: Why It Matters More Than Gauge

Walk into any auto parts store and you'll find battery cables labeled "4 AWG" or "2 AWG" at reasonable prices. What those labels often don't tell you is whether the conductor is pure copper or copper-clad aluminum (CCA).

CCA wire uses an aluminum core with a thin copper coating. It's cheaper to manufacture and lighter in weight — which is why it's popular. But aluminum conducts electricity roughly 37% less efficiently than copper. For low-current, short-run applications like a car stereo, that's not a dealbreaker. For an inverter pulling 80–100 amps from a battery, it absolutely is.

What Pure Copper Actually Gives You

Lower resistance per foot: Less energy is lost between your battery and inverter, which means the inverter sees closer to full battery voltage under load.
Less heat generation: Resistance and heat are directly linked. Pure copper cables run cooler, which is critical in an enclosed engine bay or under-seat installation.
More stable performance under load: When you're running a power tool, laptop, or small appliance, load spikes are normal. Pure copper handles those spikes without the same voltage sag as CCA.
Longer service life: Aluminum oxidizes faster than copper, especially at connection points. Oxidation at a terminal increases resistance over time — exactly the opposite of what you want in a high-current circuit.

For a pure copper battery cable inverter car setup, a properly rated 4 AWG pure copper cable (like a 4 AWG pure copper battery inverter cable) is often the minimum starting point for inverters up to around 1000W at 12V. For larger inverters, 2 AWG or even 1/0 AWG becomes necessary.

Choosing the Right Gauge for Your Inverter's Wattage

Gauge selection is where most DIYers get tripped up. The common mistake is picking a cable gauge based on what "looks big enough" or what happens to be available. Instead, you need to calculate based on your inverter's maximum current draw and your cable run length.

The Basic Formula

Watts ÷ Volts = Amps. A 1000W inverter on a 12V system draws approximately 83 amps at full load. Factor in inverter inefficiency (typically 85–90%), and that number can climb to 95+ amps.

Gauge Recommendations by Wattage

Up to 400W: 6 AWG pure copper, run under 5 feet
400W–800W: 4 AWG pure copper, run under 6 feet
800W–1500W: 2 AWG pure copper, run under 8 feet
1500W–3000W: 1/0 AWG ("one-ought") or larger

These are conservative estimates — and conservative is good when you're dealing with battery terminals and high current. If in doubt, go one gauge heavier. The cost difference is small. The safety margin is significant.

Cable Length: The Factor Nobody Measures Before They Buy

Here's a scenario that plays out all the time: someone installs an inverter in their trunk or cargo area, runs cables from the battery in the front engine bay, and wonders why performance is poor even with a "good" cable.

Cable length compounds resistance. A 6-foot run at 4 AWG behaves very differently from a 12-foot run at the same gauge. Every additional foot of cable adds resistance, and resistance means voltage drop.

If your inverter is mounted more than 4–5 feet from your battery, you have two choices: go heavier on gauge to compensate, or add a secondary battery closer to the inverter's location. Many experienced installers do both — they run thicker cables and add a deep-cycle auxiliary battery in the trunk, which handles inverter loads independently while the alternator recharges it through a battery isolator.

Why Keeping Cables Short Isn't Just About Voltage

Short, direct cable runs also reduce the chance of a cable rubbing against a sharp edge, getting pinched under a seat, or coming into contact with hot engine components. Every foot of exposed cable in a vehicle is a potential failure point. Plan your routing before you buy your cable — not after.

Terminals, Crimps, and Connections: Where Most Installs Actually Fail

Even perfect cable can be undermined by a bad termination. The connection between cable and terminal is a critical junction in your circuit. A loose crimp, an oxidized ring terminal, or a terminal that doesn't match your cable gauge will add resistance right at the point where it causes the most heat and the most damage.

What Good Termination Looks Like

Proper crimp tools: A ratcheting hex crimp tool (not pliers) creates a cold-weld connection that won't loosen over time.
Tinned copper ring terminals: Tinning prevents oxidation at the terminal, which is especially important in humid climates or when cables run near the battery's off-gassing area.
Heat shrink over every terminal: Marine-grade adhesive-lined heat shrink creates a moisture seal that bare electrical tape can't replicate.
Correct terminal size: The terminal's wire barrel should match your cable gauge exactly — not approximate it.

A well-crimped, properly sealed terminal on a pure copper cable will outlast the vehicle in most cases. A poorly done connection on even expensive cable can fail within months.

Fuse Placement: The Safety Rule That Protects Everything Else

In any battery cable inverter setup, fusing is not optional — it's structural. The fuse (or circuit breaker) needs to be placed as close to the positive battery terminal as physically possible. Ideally within 18 inches.

Here's why: if a cable shorts anywhere along its run, the fuse needs to blow before the cable melts or starts a fire. The section between the battery and the fuse is the most dangerous stretch because it's unprotected. Keep that distance minimal.

Sizing the Fuse

Fuse amperage should be rated to protect the wire, not the inverter. The inverter already has its own internal protection. Your fuse protects the cable from overcurrent damage. As a rough guide, use a fuse rated at 125–150% of the cable's maximum ampacity — not the inverter's rated draw.

Grounding: The Side of the Circuit That Gets Ignored

Most inverter guides spend 90% of their time talking about the positive cable and almost nothing about the ground. This is backwards.

A weak ground connection causes the exact same symptoms as a weak positive cable: voltage drop, thermal runaway at connections, intermittent shutdowns, and inverter protection trips. The ground circuit carries the same current as the positive side — it just doesn't spark as dramatically when something goes wrong, so it gets less attention.

Ground Best Practices for Car Inverter Setups

Match your ground cable gauge exactly to your positive cable. Same AWG, same material, same termination quality.
Ground directly to the battery negative terminal when possible — not to chassis ground. Chassis grounds are fine for accessories, but for a high-current inverter, you want a clean, dedicated return path.
If you must use a chassis ground point, use a dedicated ground block and verify the chassis connection point is clean bare metal — not painted or corroded.
Inspect ground connections annually. They oxidize faster than positive terminals because they're often less protected.

Routing Cable Safely Through the Vehicle

Pulling cable through a vehicle's firewall and along its interior is where most DIY installs introduce long-term problems. A few principles that make the difference:

Use a grommet at every firewall penetration. Metal edges will chafe through insulation over time. Every hole needs a rubber grommet.
Avoid running positive cable alongside brake lines or fuel lines. In a fault condition, heat from the cable should not interact with anything flammable.
Secure cable every 12–18 inches with cable saddles or clamps. Unsecured cable rattles, chafes, and fatigues at connection points.
Route away from heat sources. Catalytic converters, exhaust manifolds, and heater ducts all run hot. Battery cable insulation is rated for typical ambient temperatures — not radiant heat from exhaust.

Quick Checklist Before You Power Up Your Inverter

✅ Cable is labeled pure copper — not CCA or unlabeled
✅ Gauge is appropriate for your inverter's wattage and cable run length
✅ Total cable run is as short as possible, or gauge has been stepped up to compensate
✅ Fuse is within 18 inches of the positive battery terminal
✅ Fuse amperage is sized to protect the cable, not just the inverter
✅ All terminals are crimped (not soldered-only) with proper tools and sealed with adhesive heat shrink
✅ Ground cable matches positive cable in gauge, material, and connection quality
✅ All cable runs are secured, protected at penetration points, and routed away from heat and sharp edges
✅ Test with a multimeter: check voltage at the battery, then at the inverter terminals under load — drop should be under 0.5V for a quality installation

Getting a pure copper battery cable inverter car setup right isn't complicated — but it does require making deliberate choices at each step. The cable material, the gauge, the termination, the fuse placement, and the ground circuit all interact. Shortcut any one of them and the whole system pays for it. Do each one correctly and you'll have a rock-solid power setup that handles real loads without drama.
