The Anatomy of a Great 4K Dash Cam Front and Rear Setup: 7 Features That Actually Make a Difference

Why Most Dash Cam Installations Go Wrong

You bought a dash cam. You were excited. You slapped it on the windshield, plugged it into the cigarette lighter, and called it a day. Two weeks later, the suction cup peeled off on a hot afternoon, the footage is blurry at night, and the rear camera wire is just... hanging there, held up by a prayer and some electrical tape.

Sound familiar? You're not alone. A 4K dash cam front and rear system is genuinely one of the smartest investments you can make for your vehicle — but only if it's installed correctly. Done right, it runs silently in the background, captures crystal-clear evidence when you need it most, and stays out of your way 100% of the time. Done wrong, it's a $150 paperweight dangling from your windshield. This guide is here to make sure you're in the first camp.

Feature 1: Resolution — What "4K" Actually Means for Your Setup

Not all 4K is created equal. The front camera in a 4K dash cam front and rear system should record at 3840×2160 pixels. That's the resolution that lets you read license plates at a distance and capture lane-change details clearly. But watch what happens to the rear camera: many "4K systems" pair a 4K front unit with a 1080p or even 720p rear unit.

That matters. The rear camera is often the more critical angle in a parking lot fender-bender or a rear-end collision. Look for systems where both channels record at 1080p minimum — and ideally 2K or higher for the rear. True dual-4K systems exist, but they generate massive file sizes, so you'll need a high-endurance microSD card rated for continuous write cycles (look for cards labeled "dashcam-grade" or "high endurance").

Pro tip: Video bitrate matters as much as resolution. A 4K camera at 20 Mbps will look worse than a 2K camera at 35 Mbps, especially in low light. Check the specs sheet, not just the marketing headline.

Feature 2: Placement — Front Camera Positioning Done Right

The single biggest installation mistake people make is windshield placement. Here's what you need to know:

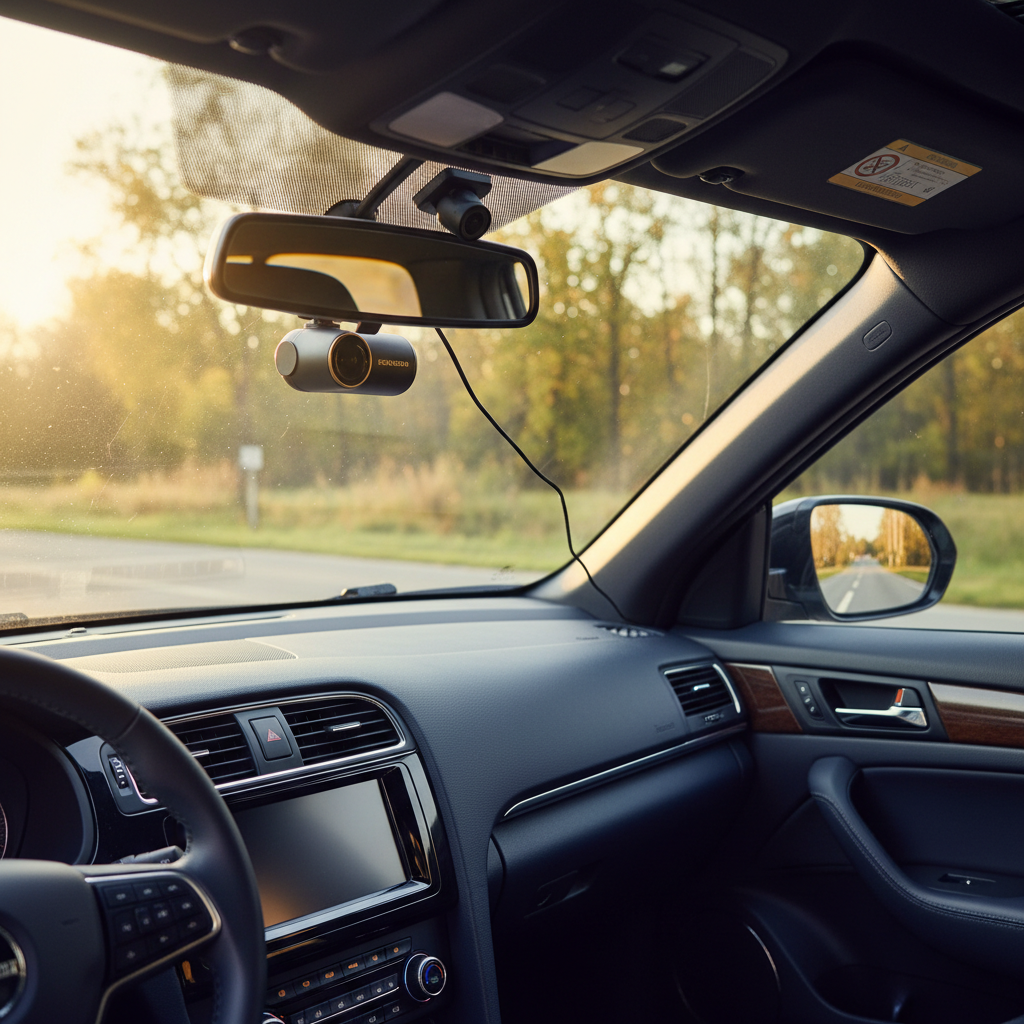

Mount behind the rearview mirror: This keeps the camera out of your field of vision and reduces glare. Center it horizontally, tucked tight against the mirror housing.
Stay within the legal zone: Most states require dash cams to be mounted in specific areas of the windshield (often within a few inches of the top). Check your state's laws before mounting.
Angle matters: Tilt the lens slightly downward so the horizon line sits at roughly the upper third of the frame. Too much sky = wasted pixels. Too much hood = missed plate reads.
Avoid dashboard reflection: If you see your dashboard reflected in the footage during daytime, angle down slightly or use an anti-glare lens hood if your model supports one.

For adhesive mounts, clean the windshield with 90%+ isopropyl alcohol first. Give the adhesive 24 hours to fully cure before driving in extreme heat or cold. Suction cup mounts are convenient but notorious for failing in summer heat — especially in states like Arizona or Texas.

Feature 3: Rear Camera Routing — The Part Everyone Dreads

Let's be honest: routing the rear camera cable is the most tedious part of a 4K dash cam front and rear installation. But it's also what separates a clean, professional-looking setup from a rat's nest of wires across your headliner.

Here's the step-by-step process that works in most sedans and SUVs:

Remove the A-pillar trim (the trim strip running from the dash up the windshield pillar). Most snap off with a trim removal tool — no screws required.
Tuck the cable along the roofline rubber seal between the headliner and the roof. Use a plastic pry tool or a flathead screwdriver wrapped in tape to gently push the wire up behind the seal.
Continue along the D-pillar (rear vertical trim) down to the rear window. Same technique — tuck the wire behind the rubber seal.
For the rear window mount: Run the cable under the trim along the bottom of the rear window. If you have a heated rear window, route the wire carefully to avoid crossing the heating element filaments — never tape directly over them.
Use included adhesive cable clips to secure any visible runs neatly.

The goal is zero visible wire. It's absolutely achievable in under an hour with the right tools (a trim removal kit costs about $10 and is worth every penny).

Feature 4: Power Source — Cigarette Lighter vs. Hardwiring

This is a bigger decision than most people realize. Your two main options for a 4K dash cam front and rear system are:

Option A: Cigarette Lighter / 12V Adapter

Quick, reversible, and zero wiring skills required. The downside? The camera only records when the car is on. No parking mode. Also, the dangling cable from the adapter to the camera is almost impossible to hide cleanly.

Option B: Hardwiring via Fuse Box

This is the right way to do it if you want parking mode and a clean install. You'll connect the dash cam's power cable directly to your vehicle's fuse box using a mini-fuse add-a-circuit adapter. Most dash cam hardwire kits include this and a ground wire. You'll tap into:

An always-on fuse (for constant power / parking mode)
An ignition-switched fuse (to signal the camera when the car turns on/off)
A ground point on the chassis or fuse box chassis ground

If you're not comfortable working around your vehicle's electrical system, that's totally valid — a local installer can hardwire a dash cam in about 30 minutes for a reasonable fee. What you want to avoid is leaving live wires unsecured near the fusebox, or tapping into the wrong fuse (always-on vs. switched — mixing these up can drain your battery overnight).

Speaking of battery protection: if you're running parking mode, your camera is drawing power continuously. A quality battery disconnect switch or voltage cutoff feature (most good hardwire kits include one) will protect your battery from being fully drained during extended parking periods. The 200A Battery Disconnect Switch is one option worth having in your toolkit for vehicles where you want manual control over the electrical circuit during maintenance or storage.

Feature 5: Night Vision and WDR — What Makes Footage Usable After Dark

A dash cam that looks great in daylight but produces murky, unusable footage at night is genuinely worse than no dash cam — because it gives you false confidence. Here's what to look for:

Wide Dynamic Range (WDR) or HDR: This prevents the camera from blowing out highlights (like oncoming headlights) while keeping shadows visible. Essential for tunnels, underpasses, and night driving.
Aperture: Look for f/1.8 or wider. A wider aperture lets in more light without requiring longer exposure (which causes motion blur).
Sony STARVIS or similar sensor: This is the gold standard for low-light dash cam sensors. Any camera listing this sensor is a serious contender.
IR night vision for interior cameras: If your system includes a cabin-facing camera (useful for rideshare drivers), make sure it has infrared LEDs. Visible-light-only interior cameras are useless at night.

Feature 6: Storage and Loop Recording — Never Lose What Matters

Your 4K dash cam front and rear system generates a lot of data. At 4K dual-channel, expect to use 3–6 GB per hour depending on bitrate settings. That means a 128 GB card fills up in roughly 20–40 hours of recording.

Loop recording solves this automatically — the camera overwrites the oldest footage once the card is full. But here's the catch: if something important happens, you need to lock that clip before it gets overwritten. Most systems do this automatically when the G-sensor detects a collision. Make sure yours has a G-sensor (accelerometer) and that you configure its sensitivity properly.

Too sensitive? Every speed bump triggers an emergency save and fills your protected folder. Too low? A real fender-bender might not trigger it. Start at the default setting and adjust based on your road conditions.

Card recommendations for 4K recording:

Minimum: 64 GB Class 10 / U3
Recommended: 128 GB high-endurance (Samsung PRO Endurance, Sandisk High Endurance)
Reformat the card in-camera every 3–6 months to prevent write errors

Feature 7: App Connectivity and Firmware — The Features People Ignore Until They Need Them

Most modern 4K dash cam front and rear systems include Wi-Fi connectivity and a companion app. This sounds like a gimmick until you actually need to pull footage immediately after an incident — without removing the SD card, without going home to your laptop, right there in a parking lot.

A good app lets you:

Preview and download clips directly to your phone
Adjust camera settings without touching physical buttons
Check live view (useful for verifying camera angles after installation)
Receive firmware update notifications

Firmware updates are genuinely important. Manufacturers regularly push updates that fix exposure bugs, improve night vision processing, and patch connectivity issues. A dash cam running two-year-old firmware is underperforming. Check for updates every few months — it takes about five minutes and makes a measurable difference in footage quality.

If you're looking for a solid all-around option, the 70mai 4K Dash Cam Front and Rear checks most of these boxes: true 4K front recording, a decent rear camera, Wi-Fi app control, and solid night vision performance at a price that doesn't require a second mortgage.

Quick Checklist: Your 4K Dash Cam Front and Rear Installation

Before you call your install done, run through this list:

☑ Front camera mounted behind rearview mirror, within legal windshield zone
☑ Camera angled so horizon sits at upper third of frame
☑ Adhesive mount cured for 24 hours before extreme-temperature driving
☑ Rear camera cable fully tucked — zero visible wires
☑ Rear camera cable routed away from heated rear window filaments
☑ Power source confirmed: adapter (basic) or hardwired (recommended)
☑ If hardwired: correct fuses tapped, ground secured, voltage cutoff in place
☑ MicroSD card formatted in-camera before first use
☑ G-sensor sensitivity configured for your road type
☑ App connected, live view verified for both cameras
☑ Firmware updated to latest version
☑ Test drive completed — review footage from both channels before relying on the system

Final Thoughts

A properly installed 4K dash cam front and rear system is one of those things you set up once and then forget about — right up until the moment it saves you in an insurance dispute, a he-said-she-said parking lot situation, or a road rage incident you didn't start. The installation itself isn't complicated, but the details really do matter: placement, wiring cleanliness, power source, storage configuration, and keeping the firmware current.

Take an extra hour to do it right. Tuck those wires. Hardwire if you can. Set up the app. Then enjoy the peace of mind knowing that whatever happens out there on the road, you've got receipts.
